String EL Detector

The definition of a string EL detector is not only to ensure the quality of photovoltaic cell modules or the power generation of photovoltaic power plants, but also to comprehensively identify the responsibilities of manufacturers, logistics, construction parties, EPC, owners, and operation and maintenance. The standards and criteria for testing, efficiency and performance, will be important criteria for evaluating testing equipment.

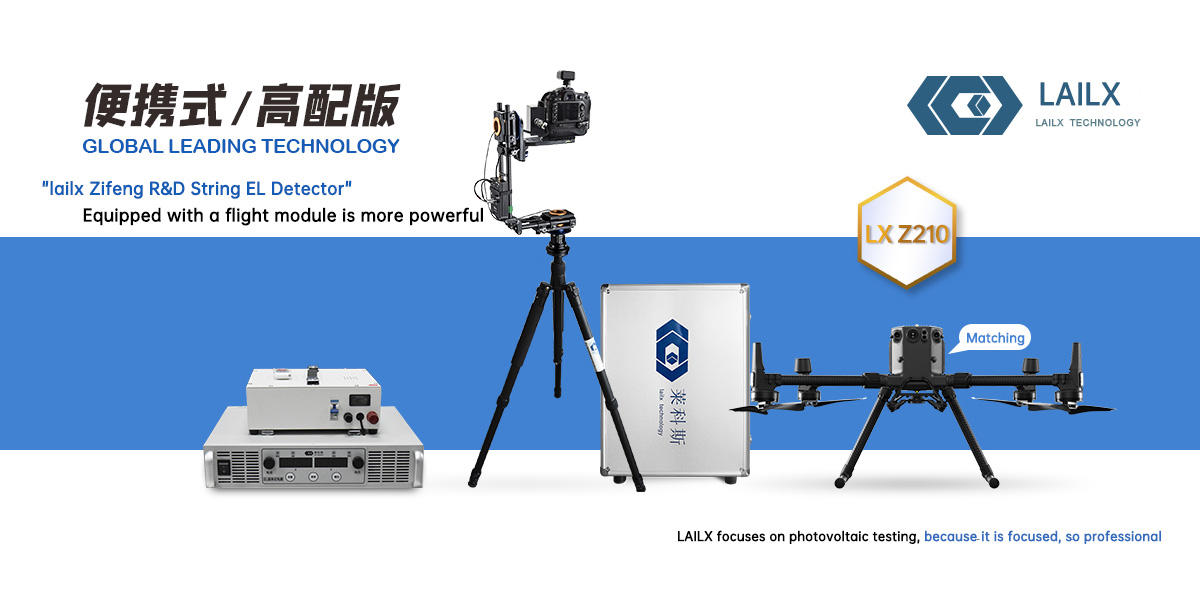

Z210 series flagship devices showcase excellent quality

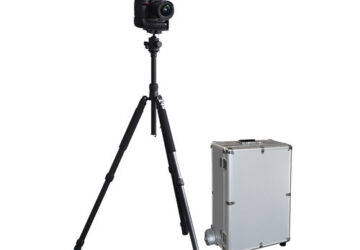

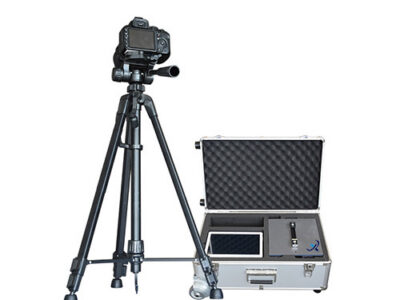

The photovoltaic power plant string EL detector is not only equipped with a standard portable EL detector, but also has multiple expandable optional functions
The standard model is paired with the D9G series high-end high-sensitivity EL camera, which has a higher pixel ratio and full-time autofocus capability
The D9G series camera can achieve synchronous detection and clear imaging of 1-24 components in pixels, with higher pixel capability. At the same time, it has a Lexus patented full-time autofocus system, which can perform all-round autofocus within the image without the need for autofocus operation. For EL detection environments, the D9G has higher low light autofocus capability, without the need for external pseudo autofocus tools such as infrared lights.

More efficient and lightweight string power module
The positioning of Z210 string EL detector is string type EL detection, and array detection capability is its essential function. Lexus has optimized the string type power supply (imported) for it, which has a smaller volume, lighter weight, higher stability and parameter accuracy, internal temperature control system, programmable operation module, and multiple patented security functions. It can complete synchronous power on detection of a string at the on-site array end and junction box through seamless connection operation.

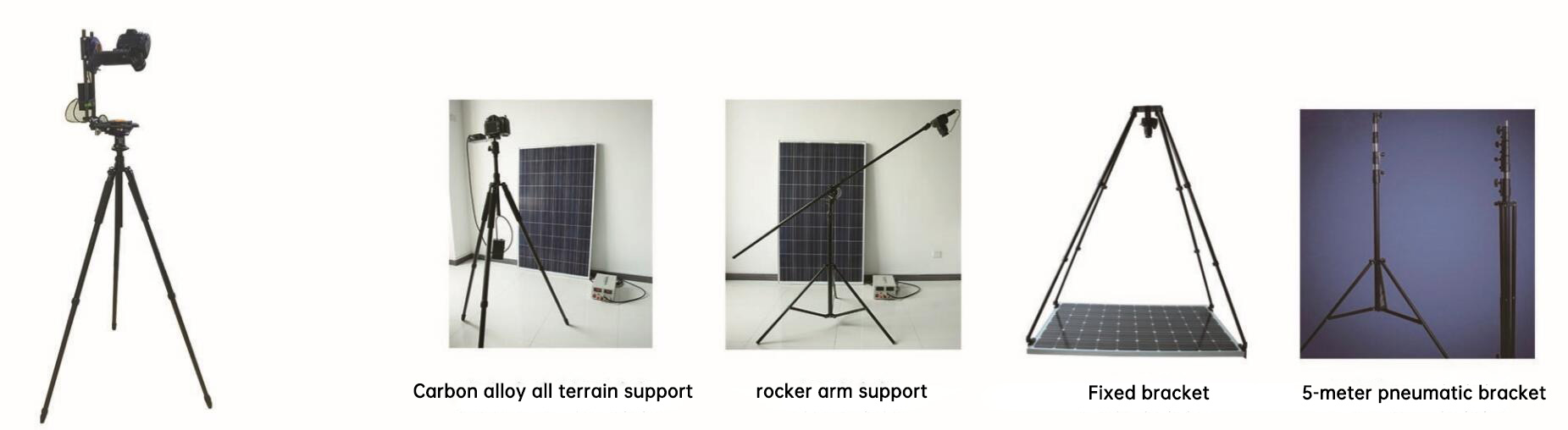

Diverse stent selection
The high-end series of string EL detectors provides 3 sets of bracket systems to meet the needs of different power stations. At the same time, the PTZ system is specially equipped with a wireless PTZ adjustment module by Lexus, which can adjust the camera angle through wireless operation function during array detection and high-altitude operation. Combined with the Lexus panoramic positioning device, the camera angle can be adjusted faster, increasing detection efficiency by 5-10 times.

LAILX standard configuration matching

The Z210 string EL detector not only expands its high-end functions, but also has a more comprehensive configuration system for the Z series internally, including camera module, bracket module, power module, darkroom module, etc. The high-end series is fully equipped with Lexus' leading more comprehensive configuration functional components, fully using Lexus' high standard specifications to create the flagship EL detector.

For many years, we have been committed to brand building and providing 24-hour after-sales service for our products. All parameters are clearly marked, and product quality standards have always been the unchanging values of LAILX

Z210 expands optional features with the fifth generation EL imaging

EL scanner, all terrain detection equipment

Conventional photographic EL detectors are far from meeting the market demand for complementary fishing and photovoltaics, agricultural greenhouses, and mountain power stations. The difficulty of operation and the danger of operation have become the main obstacles. After years of effort, LAILX has overcome the difficulty of scanning detection for photovoltaic EL defects. The latest EL scanner developed and produced by Lexus can achieve local and large-area scanning detection of battery cells/panels/array components, with real-time synchronized transmission of detection images and videos. Multiple operation methods can quickly complete large-area EL internal defect detection of battery panels.

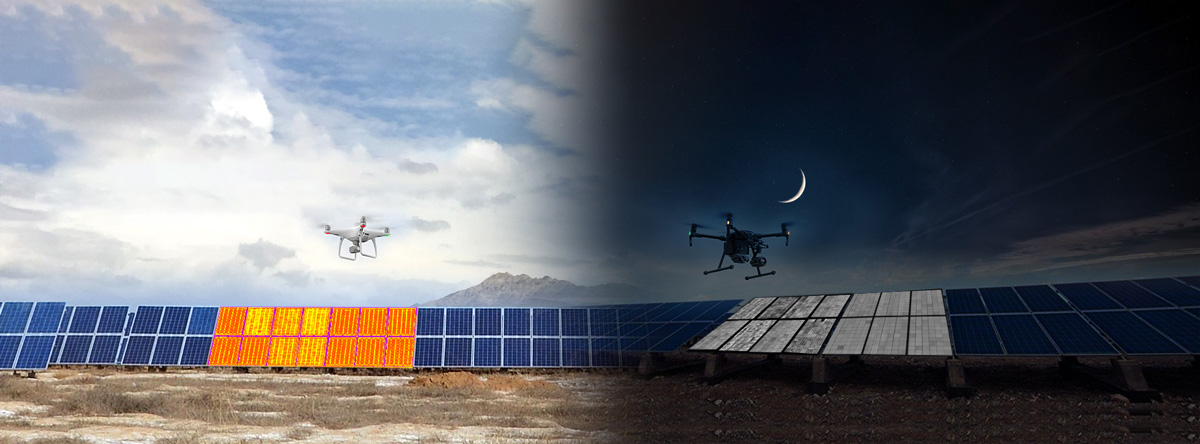

Drone detection, aerial EL+thermal imaging

Large scale inspection and daily maintenance inspections are the development trend of the photovoltaic power station market. The quality problems of solar panels directly affect the power generation efficiency and cost-effectiveness. The LXH210 has emerged, which has the ability to switch between EL detection cameras/EL scanning cameras/infrared thermal imaging cameras for targeted cyclic inspection. The LXH210 can inspect power stations and power systems within a range of 15 kilometers, including local or large-scale component EL internal crack defect detection, hot spot detection, etc. of photovoltaic power station array components

Configuration List:

LAILX is committed to the research and production of photovoltaic testing equipment, including EL testing series, portable EL detectors, string EL detectors, drone EL testers, IV power testing series, portable IV testers, power quality analyzers, and other related photovoltaic power station testing equipment and photovoltaic production line laboratory testing equipment.
