solar-irradiance
Model: LXH400 Made in China 2023 version Application area Product Features Radiation monitoring and continuous data collection 150 hours of energy s...
咨询电话:+86 177-0622-2370

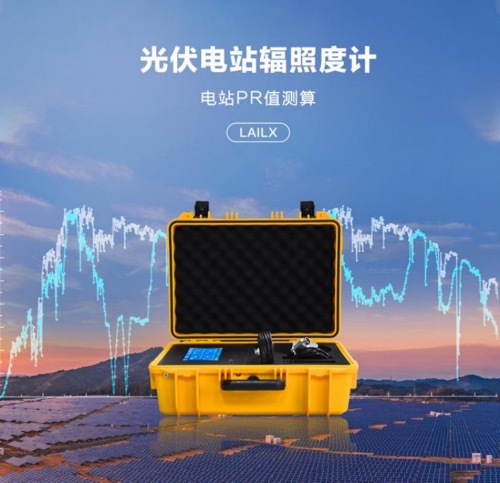

Model: LXH400
| Made in China 2023 version | Application area | Product Features |
| Radiation monitoring and continuous data collection | 150 hours of energy storage power supply | |
| Calculation of PR system efficiency value for photovoltaic power station | 24-hour monitoring of external power supply | |

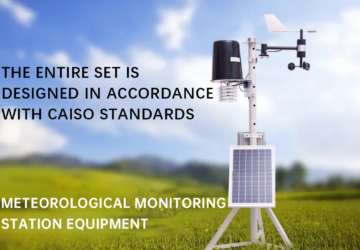

| Integrated meteorological station monitoring | Can be networked for remote monitoring | |
| Temperature collection | Scalable data storage | |
| Irradiance collection | Thermopile sensor |
Technical specifications
| LXH400 | Specification |
| Irradiance collection | 0～2000W/㎡ ；±1W/㎡ |
| Irradiance reading | 1W/㎡ |
| Irradiance accuracy | 7 ～14μV／w•㎡ |
| Irradiation response | ≤ 35 seconds (99%) |
| Internal resistance value | About 350 Ω |
| Spectral range | 0.3-3μm |
| Annual stability | ≤±2% |
| Cosine response | ≤ 7% (at a solar altitude angle of 10 °) |
| Directional response error | ≤ 5% (at a solar altitude angle of 10 °) |
| Environmental temperature collection | -50～100℃ |
| Environmental temperature reading | 0.1℃ |
| Environmental temperature accuracy | ±0.3℃ |
| Component Backboard Temperature Collection | -50～80℃ |
| Backboard temperature reading | 0.1℃ |
| Backboard temperature accuracy | ±0.5℃ |
| Temperature characteristic | ±2％(-10℃~+40℃) |
| Nonlinear | ≤2% |
| 4G SIM card slot | Computer software for remote monitoring of data/downloading data reports/generating waveform diagrams/interface compatible with meteorological station software |
| Memory card slot | SD card expansion |
| Power module | External 220V long-term use/mobile power bank |
| Device Software | Functions such as importing and exporting data, drawing waveform diagrams, generating reports, uploading data, and remotely configuring device parameters |
| LCD | Multi channel data acquisition; LCD screen display; |
| Ambient Temperature | -40℃~+85℃ |
| Weight | 2.5kg |

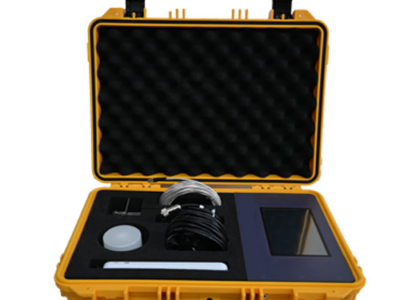

Configuration List
| Number | Hardware | Quantity | Unit |
| 1 | Irradiance collector | 1 | Set |
| 2 | Atmospheric environment temperature sensor | 1 | Set |
| 3 | Component mounted temperature sensor | 1 | Set |
| 4 | TBQ Total Radiation Sensor | 1 | Set |
| 5 | Data collector | 1 | Set |
Note: Export data to an Excel spreadsheet, and the collector can also be connected to a computer for real-time card checking, providing an interface
