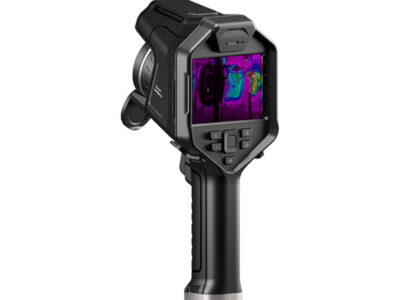

Handheld thermal imaging thermometer LX-F300

Model: LX-F300 Handheld thermal imaging thermometer The Lexus LX-F300 handheld infrared thermal imager is a high-resolution manual focusing thermal imaging t...

咨询电话:+86 177-0622-2370

立即咨询

详细介绍

Model: LX-F300
Handheld thermal imaging thermometer
The Lexus LX-F300 handheld infrared thermal imager is a high-resolution manual focusing thermal imaging thermometer. Built in self-developed 12 μ m high performance
Capable of 640 × 512 infrared thermal imaging core, paired with a 500W visible light camera, 35mK thermal sensitivity+30Hz high frame rate, precise manual focusing function, which can save focusing time and provide accurate data and clear images that meet the requirements of scientific research and analysis work. The LX-F300 infrared thermal imager has numerous outstanding features and is a powerful assistant for scientific research, professional equipment, and building inspection engineers.
640 × 512 resolution 35mK temperature resolution ± 2 ℃ temperature measurement accuracy

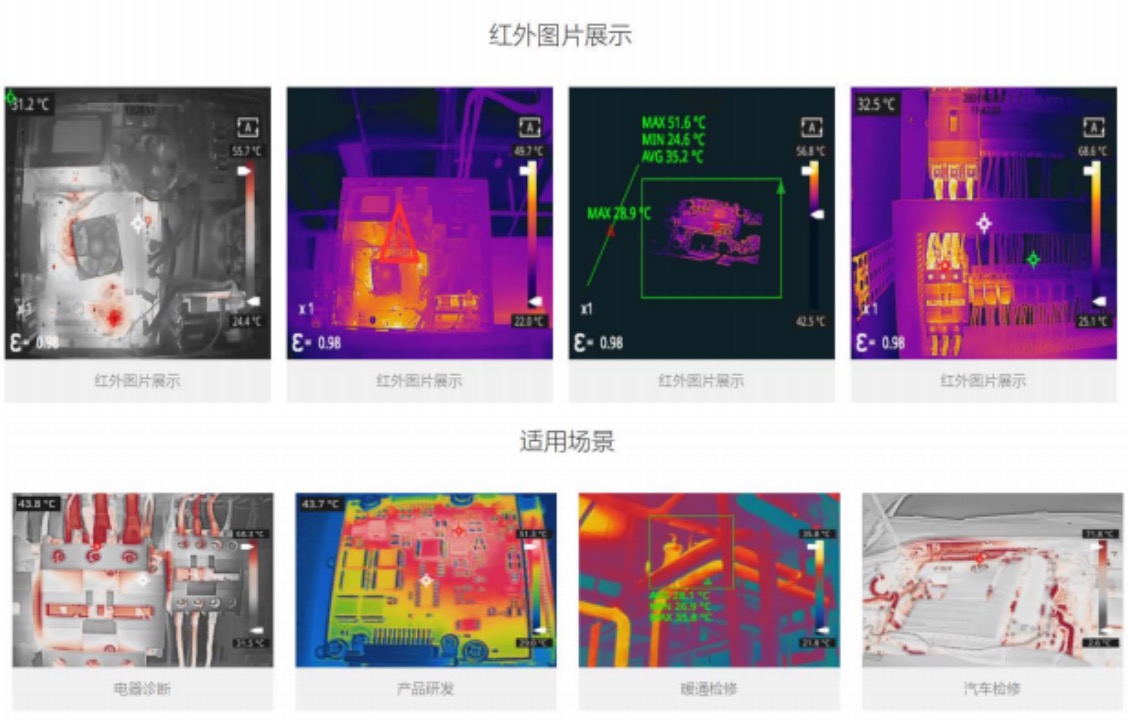

Applicable scenarios: R&D of electrical diagnostic products, HVAC maintenance, automotive maintenance, equipment maintenance, photovoltaic field

Technical parameter


Thermal imaging performance	Detector Type	Uncooled vanadium oxide infrared focal plane detector
	Detector resolution	640×512
	Response wave band	8~14μm
	Pixel size	12μm
	NETD	35mK
	IFOV	1.31mrad
	Frame rate	30Hz
	Focal length	9.1mm
	viewing angle	48°×38°
	Focusing mode	Manual focus
	Measuring range	-20℃~+550℃
	Measuring Accuracy	± 2% or ± 2 ℃ of the reading (whichever is greater)
	Temperature measurement resolution	0.1℃
Complete machine function	Temperature measurement mode	Center point/hot and cold spot tracking and temperature display
	Customize temperature measurement for points, lines, and areas	Movable point/line/area temperature measurement; Line/area temperature measurement display hot spot tracking; Line temperature measurement displays the maximum temperature value, while area temperature measurement displays the highest, lowest, and average values;
	Temperature measurement unit	Celsius, Fahrenheit, Kelvin
	Emissivity setting	0.01~1.00, step size 0.01
	Environmental temperature setting	-10℃~+50℃,step size 1℃
	Distance setting	1~20m，step size 1m
	Image mode	Detail enhancement, infrared, visible light, picture in picture, fusion
	Colorize	10 types
	Temperature alarm	Alarm for the highest and lowest temperature exceeding the threshold in the entire frame
	Color code temperature range	Manual/automatic temperature range
	Laser pointer	Have
	Visible light camera	5 million pixels
	Electronic magnification	Maximum 8 times
	Photo/video storage function	Infrared. jpg image with temperature data+visible light. jpg image; Video without data;
	Annotation	Voice annotation through microphone

	Display Size	3.5-inch touch screen (480 × 640)
	Picture naming	Automatic naming, QR code scanning naming, manual input naming
	Memory card	Standard 32GB MicroSD card
	Cloud functionality	Can transfer shooting data to cloud storage for sharing and secondary analysis across multiple clients; Support automatic time synchronization;
	Battery type	Rechargeable lithium battery, detachable
	Power interface	USB TypeC
	Connection type	USB, SD card, WiFi (AP mode or networking mode)
	Charging duration	About 3 hours
	Working hours	About 3 hours
	Power management	Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, no automatic shutdown
Physical Performance	Analysis software	PC&APP
	Mounting method	Support tripod fixation
	Operation temperature	-10℃~+50°C
	Storage temperature	-20℃~+60°C
	Relative humidity	10% ~95%， non condensing
	Drop	2m
	protection grade	IP54(IEC 60529)
	Impact vibration	Impact 25g (IEC 60068-2-27); Vibration 2.5g (IEC60068-2-6)
	Dimensions (height x width x depth)	256.4 ×105.1×105.3(mm)
	Weight	About 670g
	Authentication	CE/FCC/RoHS20
	Accessory	5V2A power adapter, USB cable for charging, SD card, documentation, battery

Product Features

① 640 × 512 high-performance temperature measurement core
Real 320000 real-time infrared temperature measurement points+500W visible light
High resolution, high frame rate, high precision, wide range, integrated in LX-F300 USB plug and play analysis, supporting real-time transmission and analysis of full frame temperature information
② Advanced interactive functions, visualizing temperature measurement results at a glance
Three point temperature display, temperature measurement can be defined in point and line areas
PC analysis data is complete, and the app is easy to operate with 5 built-in image modes and 10 pseudo color settings
Support full frame high and low temperature reporting to traffic police and timed interval photography
③ Easy to use and reliable overall performance
Durable and sturdy, with IP54 protection level and 2-meter drop resistance

LAILX is committed to the research and production of photovoltaic testing equipment, including EL testing series, portable EL detectors, string EL detectors, drone EL testers, IV power testing series, portable IV testers, power quality analyzers, and other related photovoltaic power station testing equipment and photovoltaic production line laboratory testing equipment.
