Model: LX-F100

Product Introduction
The LXF100 series thermal imaging device is dedicated to thermal imaging temperature measurement and imaging, with a high resolution of 256x192, a temperature difference resolution of 0.04 ℃, a long battery life of 9-15 hours, and an IP54 protection level; Can meet various detection scenarios.

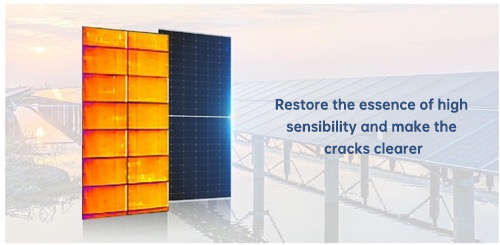

The whole machine is equipped with a higher precision 12um infrared photosensitive chip, as well as a more accurate temperature algorithm, which can analyze infrared imaging in higher definition. The 56 ° field of view provides a wider range to assist in the detection of photovoltaic power plants.

Industry Application Fields
1.Electrical maintenance
2.Equipment inspection
3.HVAC maintenance
4.Car maintenance
5.Product development

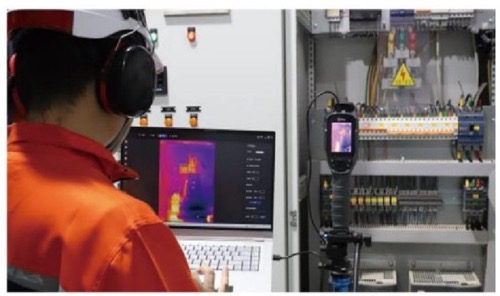

F100 can be used for handheld inspection and testing, which is more convenient and convenient. At the same time, it can also be fixedly installed for testing. With the USB projection analysis system, it can perform long-term thermal imaging temperature monitoring, which can meet the work needs in different scenarios.

Advantages and Characteristics of LX-F100

Professional warning and detection system
F100 has built-in intermittent automatic photography and threshold temperature warning photography; The number of photos taken, interval time, and temperature threshold can be freely set.

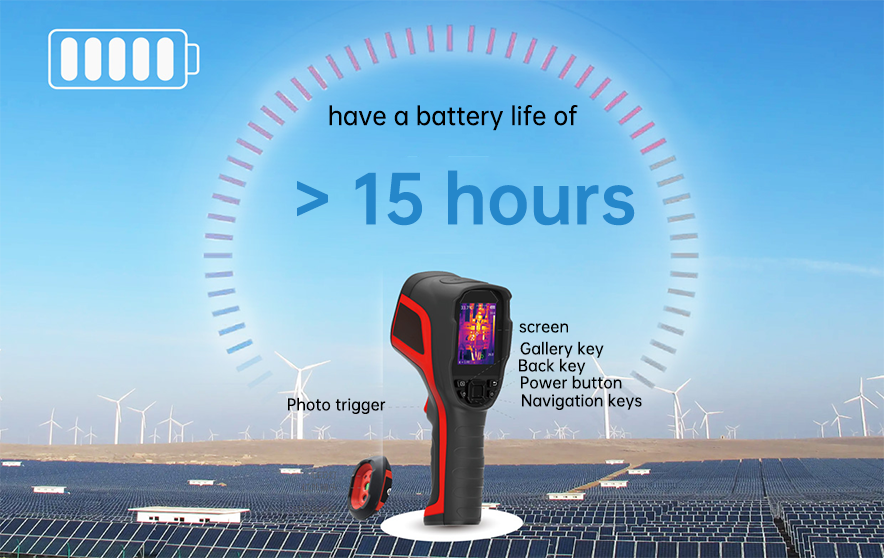

Super endurance
High power lithium energy storage batteries can last for more than 15 hours. And it can be connected to an external power supply for 24-hour uninterrupted monitoring.

One click output of detection report
F100 is equipped with more professional analysis software, which can be connected to a PC computer via USB. It not only enables real-time screen projection and heat map analysis, but also supports full frame temperature point line surface analysis and one click export of analysis reports.

LX-F100 Detailed Parameters

Product model	F100	F110	F120
Infrared resolution	256x192
Pixel size	12um
NETD	<40mK
Viewing angle	56 ° x42 °
IFOV	3.8mrad
Focus Mode	No focusing required
Temperature measurement function	Center point/highest temperature/lowest temperature	Center point/highest temperature/lowest temperature/custom point
Measuring range	-20°C~+350℃	-20℃~+550℃
Measuring Accuracy	± 2% or ± 2 ℃
Frame rate	20Hz
Temperature measurement unit	Celsius, Fahrenheit, Kelvin
Temperature measurement resolution	0.1℃
Emissivity setting	Adjustable from 0.01 to 1.0
Lighting	LED fill light
Visible light	/	200W
Image mode	Thermal Imaging	Thermal imaging, thermal fusion, visible light, picture in picture iMIX
Colorize	White hot, black hot, iron red	White heat, black heat, lava, iron red, rainbow, black red
Temperature warning	The highest and lowest temperature alarms in the entire frame area
Warning method	Image alarm, LED light alarm prompt
Warning automatic photography	/		Support
Camera timer	/		Support
USB video transfer	/		Support
PC analysis software	Support
Display Size	320x240
Memory card	16G
Working hours	9H	11H	15H
Power management	Adjustable (automatic shutdown: 5 minutes, 10 minutes, 20 minutes)
Operation temperature	-10℃~50℃
Relative humidity (RH)	10%～95%
Size (L-W-H)	237x75x92mm
Weight	520g
