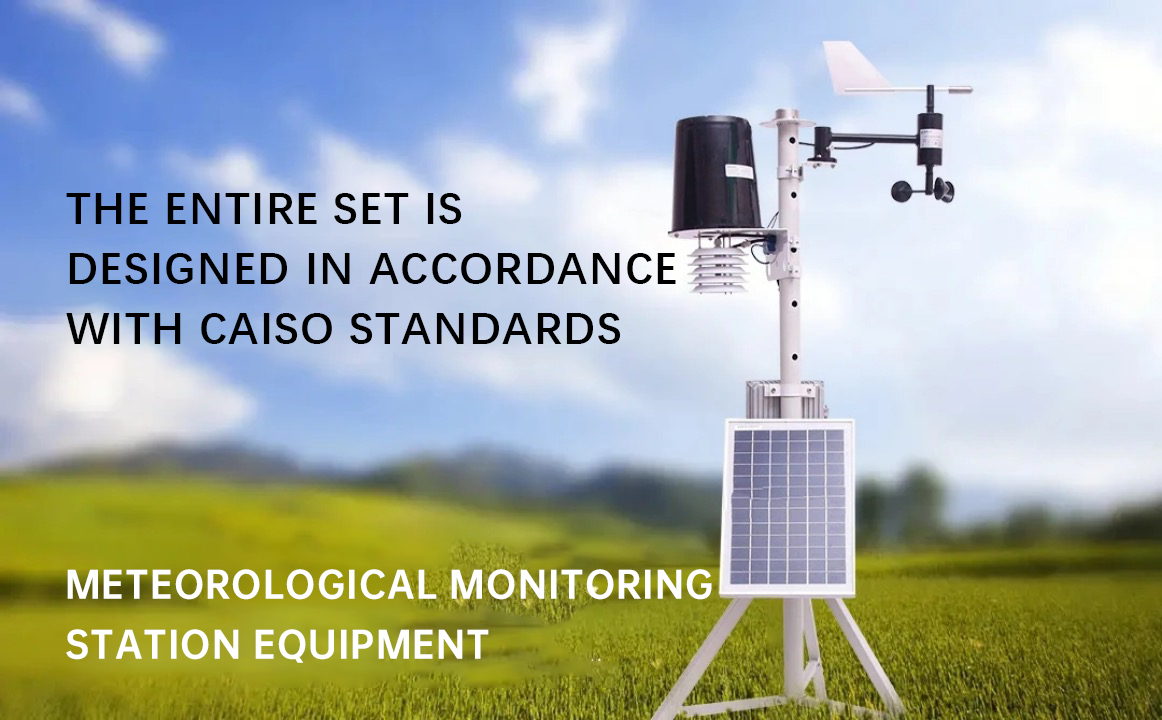

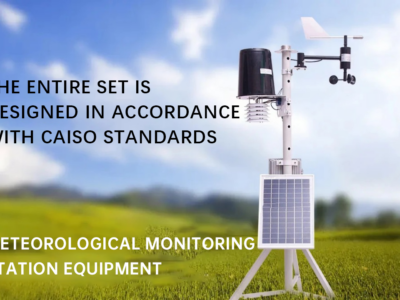

Portable weather station
Model ：LX-H500
Product Introduction
LX-H500 Meteorological Station is a system for solar energy measurement data collection, applied to meteorological monitoring in the fields of photovoltaic power generation, solar thermal power plants, and wind power generation. The entire design complies with CAISO standards and is suitable for resource assessment and power monitoring.
Performance characteristics
Measurement of horizontal and oblique solar irradiance.
Environmental temperature and humidity measurement records.
Surface temperature monitoring of objects.
Wind direction and speed monitoring, atmospheric pressure monitoring
Rainfall monitoring and cloud cover, permafrost thickness monitoring
Technical Parameter
| Specification type | LX-H500 | |
| Performance index | ||
| Host | Temperature and humidity sensor | Record the numerical values of environmental temperature and air humidity |
| Irradiance sensor | Measurement of solar horizontal irradiance and slope irradiance, and numerical comparison | |
| Wind speed sensor | Measurement and recording of wind speed and direction | |
| Surface temperature sensor | Record the surface temperature of photovoltaic panels, fans, and other items, where an increase in temperature can cause a decrease in electricity consumption | |
| System and software | Communication, interface, and remote data query and download | |
| Bracket | 2-5 meters, terrain and ground frame | |
| Power supply | AC220 power supply system, or photovoltaic panel power storage system | |
| Optional | Pressure sensor | AC220 power supply system, or photovoltaic panel power storage system |
| Optional | Precipitation sensor | Atmospheric pressure reflects the degree of air rarefaction, causing changes in irradiance and affecting the efficiency of inverters |
| Optional | Cloud cover sensor | Design of determining the tilt angle of photovoltaic modules by monitoring snowfall and rainfall |
| Optional | Permafrost thickness sensor | When conducting technical design, frozen soil thickness is one of the factors to consider, and the construction thickness should be higher than this value |
